Power to tissue

Tailor made press felt technology

Author: Heimbach GmbH

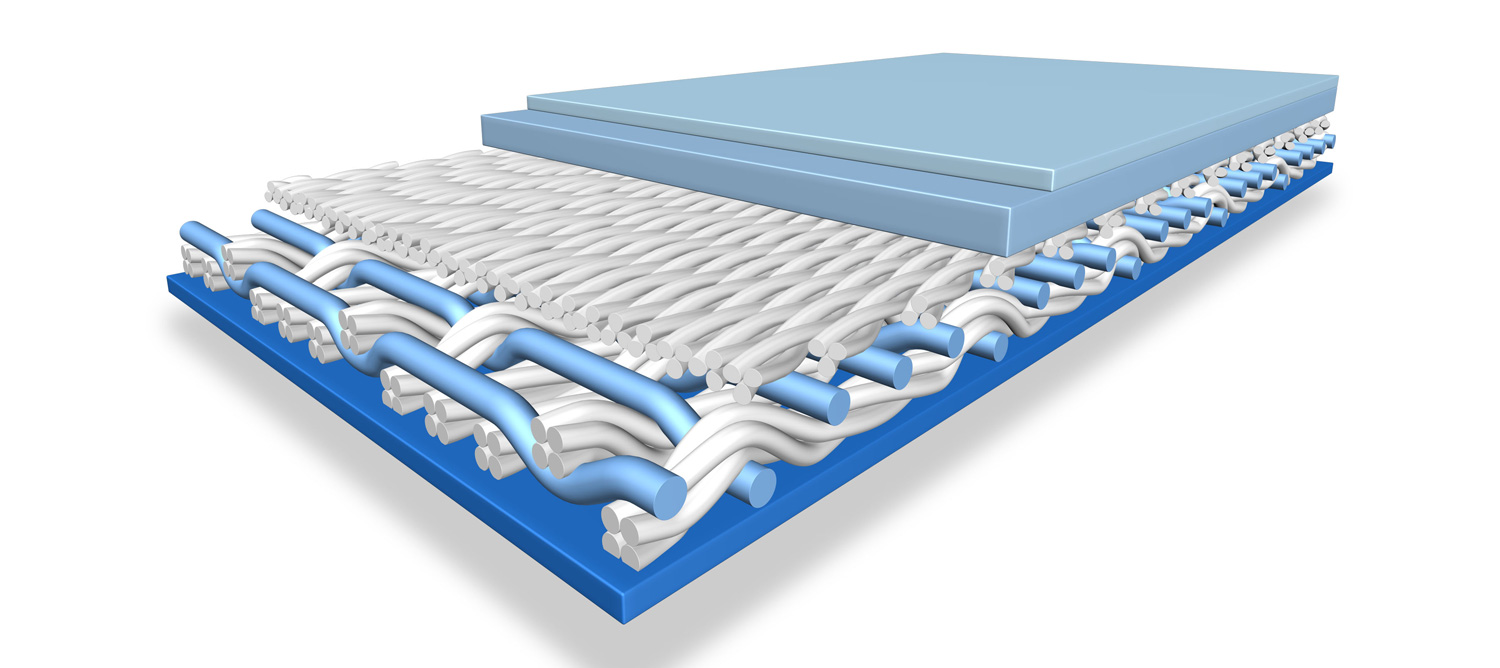

Increased number of crossing point of all yarns is the leading feature of multiaxial felt technology.

Even at the beginning of its’ development, Heimbach product managers were sure: Atrojet has the potential to usher in a new era in press felt technology. “We promised paper manufacturers that we would develop a press felt that creates completely new opportunities”, says Jochen Pirig, strategic product manager at Heimbach. This has been accomplished, as Atrojet is the first felt worldwide that unites the advantages of Heimbach’s most significant press felt design groups: the non-woven design group Atrocross and the multi-axial design group Atromaxx who both belong to the modern felt designs, so called advanced technology bases (ATB). Non-woven Atrocross and multi-axial Atromaxx press felts are offering comprehensive product ranges in their individual design group to meet the requirements of press felt application.

Either design group have their prominent advantages such as short break in time and high nip dewatering capacity of Atrocross or the great flexibility of base weave combinations of Atromaxx to meet individual and particular requirements which is important for customized well-engineered press felt application.

Expertise and customer service provide continuity, optimisation and customer satisfaction



With its uniform machine direction yarn structure Atrojet has far greater surface contact than conventional bases. This leads to more even pressure transmission at the press nip resulting in very steady dewatering and even CD profiles.



In addition to these two modern press felt design groups the classically woven, respectively laminated base weave felt designs, belong to the Heimbach assortment too. Even though the existing product spectrum is sophisticated Heimbach keeps on improving its existing product lines and developing new products.

Atrojet is one of the latest developments which is an innovating new press felt design combining the advantages of multi-axial and non-woven technology. With the multi-axial non-woven technology, the product managers can meet the particular requirements of press felt positions even better. The specific quality of Atrojet is the structure of the base inside, which is, facing the paper side, and consists of a unique non-woven layer. That layer of yarns is made of machine direction yarns only which results in great strength, evenness and smoothness of the base facing the paper side. The machine direction (MD) yarn structure is arranged in diagonal direction which is the characteristic multi-axial angle improving collapse resistance by increasing crossing points of all yarns. Broad flexibility is given by the fact that the non-woven paper side layer can consist of different ply twist yarns as well as different yarn diameters and flexible yarn count.

The evenness and uniformity from inside the felt provides smooth felt surfaces through high contact area. The homogeneous and high contact area of Atrojet base is superior among press felt technologies. Homogeneous compact felts are important features for tissue felt application regarding even pressure transmission at the press nip which is key for even dewatering and even CD profiles of the paper. The roll side base of Atrojet felts is made of multi-axial arranged components and are selected as per individual request concerning void volume, mechanical strength etc. and in context of the individual requirements of the position e.g. one or two nip positions or shoe press position, uhle boxes & vacuum rolls involved. A typical tissue machine could present the performance of a press felt in the proper light. Mileage of > 100,000 km while passing about 6 million nip cycles and handling > 50,000 m³ of water are normal requirements for a tissue felt. In addition, the level of performance is expected to be at steady high level all along the service life of a felt. Modern press felt designs from Heimbach are high-tech products which meet these requirements. In case that process parameters vary very little the felt design can be fine-tuned to its maximum performance under those standard conditions. As more the process parameters do vary as more challenging can be the designing to get an adaptable felt design.

Heimbach clothings are used in the production of a wide range of paper grades and types

Typical example of varying process parameters are paper grade changes which include machine speed and paper weight changes but also affect usage of different furnish compositions like virgin pulp or recycled fibres as well as usage of wet strength resin or dye and fixative.

Production planning is always aiming for as smooth as possible transition of process parameters during machine clothing lifetime. But these days flexibility can be key too, just to think of just-in-time deliveries, so sudden process changes may do occur. These changing conditions the press felt has to tolerate.

Here the Atrojet design flexibility can offer advantages to adapt to those changing conditions well. Thanks to the homogeneous and strong inner structure, which also contributes to high fibre batt anchorage, Atrojet has proven its robustness towards harsh high pressure shower cleaning which can prevent felt clogging e.g. when changing from virgin pulp to DIP and/or producing non wet strength to wet strength grades. Atrojet has been proven itself in the field to be able to take up even long-term laminar HP shower at pressure in range of > 30 bar.
